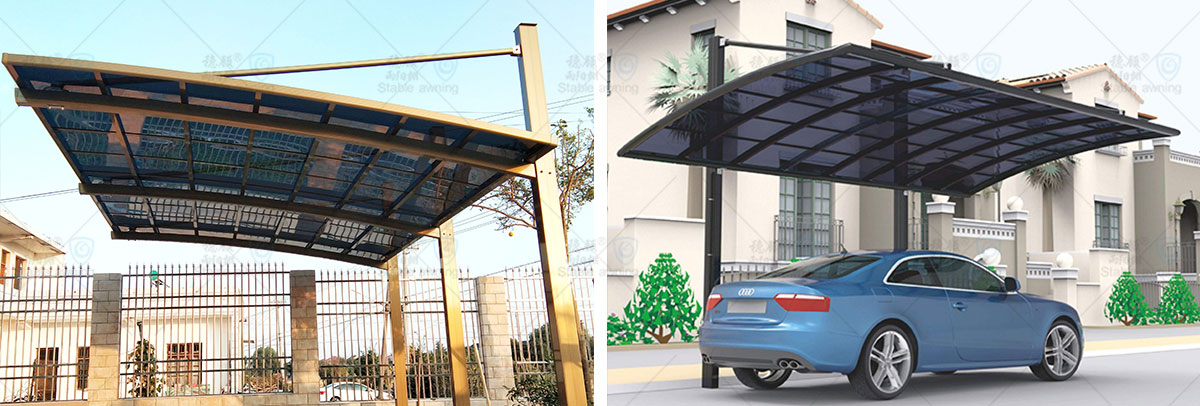

Cantilever Type Carport
Cantilever Type Carports are both good-looking and have good sun-shading, rain-proof, wind-proof and snow-resistant functions. Super quality aluminum alloy material and polycarbonate sheet make carport fully demonstrate its strengths in these sides, making your cars, bicycles and motorcycles in longer lifetime.
Description
Why do more and more people like cantilever type carports?
I guess it's because of its simple but nice appearance. And more important reason is that it's more strong and stable with tie rods on the back.
Cantilever Type Carports are both good-looking and have good sun-shading, rain-proof, wind-proof and snow-resistant functions. Super quality aluminum alloy material and polycarbonate sheet make carport fully demonstrate its strengths in these sides, making your cars, bicycles and motorcycles in longer lifetime.
Cantilever Type Carports with one side columns, can save space and is easy to park cars, same as Single One Carport and Y Joint Carport. Even if you are new in driving, you can easily park your cars well.

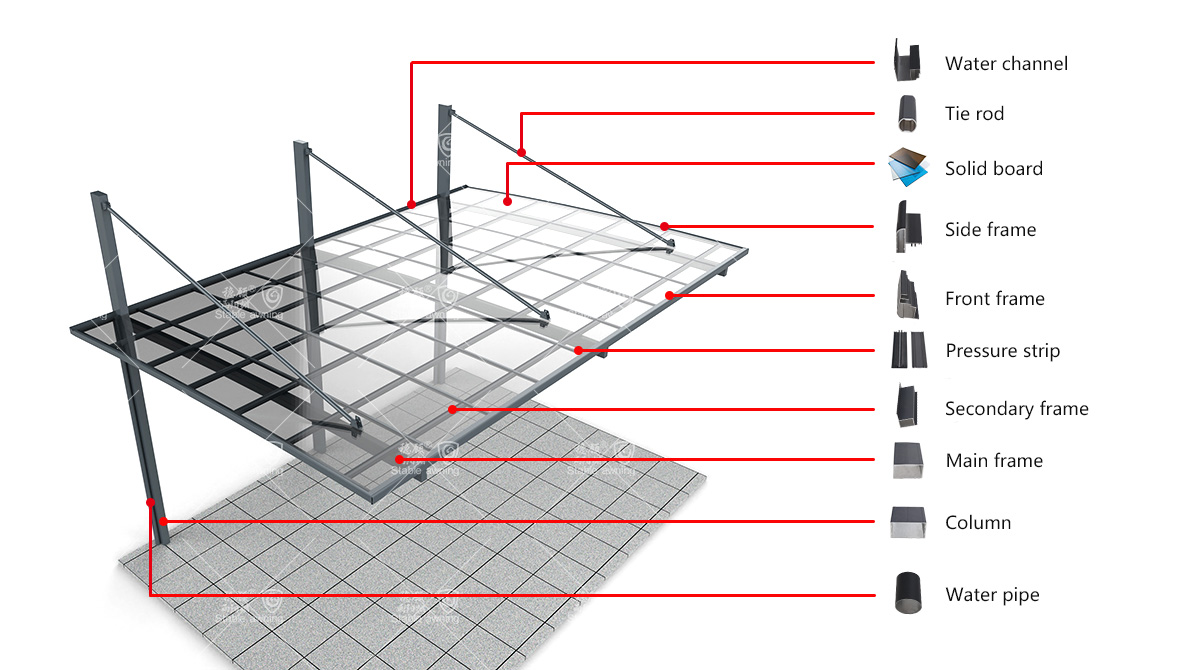

Aluminum Alloy Carports Details
 |

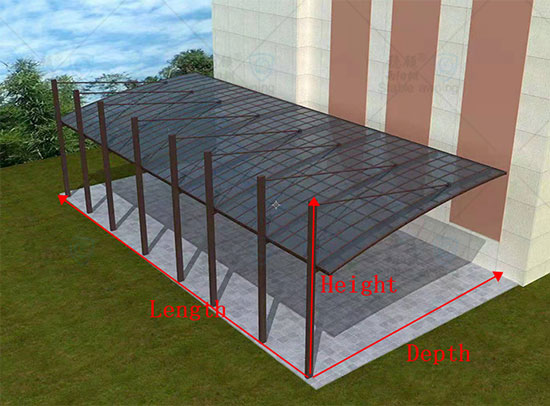

How To Measure Cantilever Type Carports
Aluminum alloy profiles specification
 |  |  |  |
| Side Frame Size:61* 69*1.0-3.4mm | Secondary Frame Size:40*41*1.0*-1.7mm | Main Frame Size:109*61*2.2-2.7mm | Column/Post Size:155*87*2.2-5.8mm |
 |  |  |  |
| Water Channel Size:71*70*1.3mm | Water Pipe Size: Φ50*0.9-1mm | Tie rod Size: Φ50*2.1-4.8mm | Front Frame Size: 71.4*60*1.2-2.6mm |
 |  |  | |
| Pressure Strip Size: 40*1mm / 40*1-1.8mm | Slide Size:51*1.2mm | Base Size: 265*295mm*30-5.05mm |
Our Advantages
- Factory direct supply, well control quality and delivery time.
- Accept customization.
- High quality material and long lifetime max 10years.
- Easy to install, supply installation instructions or installation videos.
- Support after-sale service

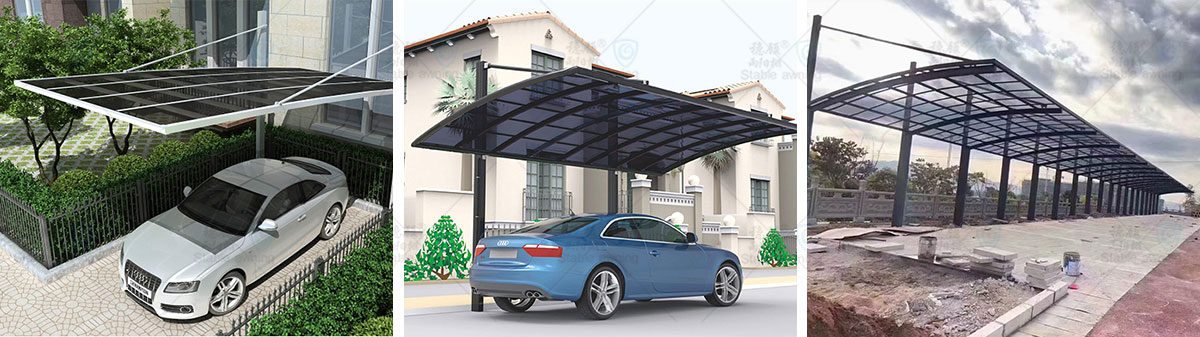

More Applications
Packing
Aluminum alloy frame and polycarbonate sheet of carport are packing separately.
