M Joint Carport

Product Details

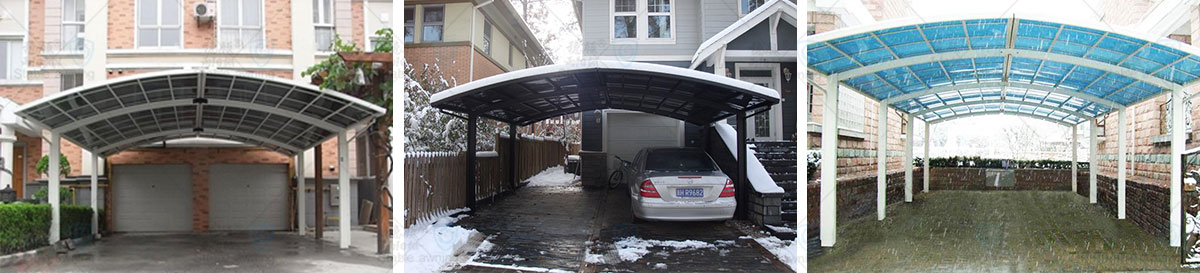

M Joint Carports usually are used for sun shading of double cars.We use high quality of aluminum alloy frame, durble solid polycabonate sheet and strong contecting parts for our carports.

This type of carport is more convenient to pack and transport, especial for LCL shipment but large size carports.Normally for over-long goods, will be charged extra fee. M joint type of aluminum alloy carport let carport packing size smaller, save space and freight cost.

M joint type carport, even if  heavy snow and strong wind, it can also resistand well and supply good protection for your cars and vehicles.

Aluminum Alloy Carports Details

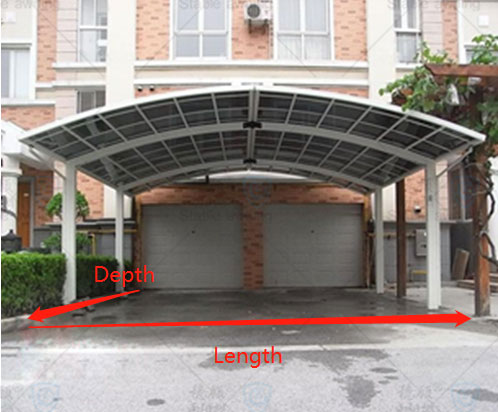

How To Measure M Joint Type Carport

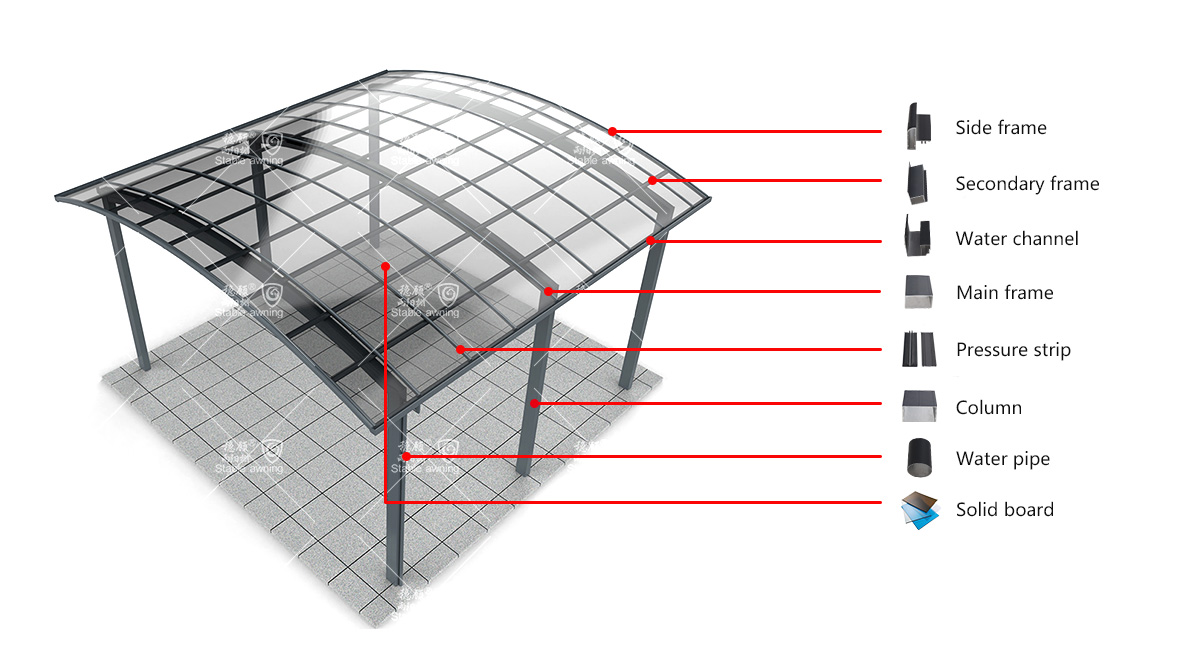

Main Aluminum alloy profiles specification

Side Frame Size:61* 69*1.0-3.4mm	Secondary Frame Size:40*41*1.0-1.7mm	Main Frame Size:109*61*2.2-2.7mm	Column/Post Size:155*87*2.2-5.8mm	Base Size: 265*295mm*30-5.05mm

Water Channel Size:71*70*1.3mm	Water Pipe Size: Φ50*0.9-1mm	Pressure Strip Size: 40*1mm / 40*1-1.8mm	Slide Size:51*1.2mm

Our Advantages

1. Factory direct supply, well control quality and delivery time.
2. Accept customization.
3. High quality material and long lifetime max 10years.
4. Easy to install, supply installation instructions or installation videos.
5. Support after-sale service

Packing

Aluminum alloy frame and polycarbonate sheet of carport are packing separately.
